WHC 5KW 15KW 20KW Hybrid Off

Overview
Product Description
Product Parameters
Detailed Photos
Certifications
Solar Projects
Company Profile

Overview

Basic Info.

Model NO.	WHC5KW-5120WH
Condition	New
Certification	CE, RoHS
Application	Home
Specification	Normal, 5KW
System Type	Residential Solar System
Load Power	5000W
Output Voltage	AC220V
Solar Panel Type	Mono Solar Panel
Inverter Type	Hybrid Solar System 5kw
Battery Type	Lithium Battery, LifePo4 Battery
Work Time	24 Hours
Solar Panel Bracket	Aluminum Alloy
Installation Site	Flat Roof Ground
Accessories	Mc4 & Cable
Usage	Home Solar System/Energy Storage System/UPS System
Transport Package	Package in Carton or According to Your Requiremen
Trademark	WHC / WHC SOLAR
Origin	Guangdong, China (Mainland)
Production Capacity	1000pieces/Month

Packaging & Delivery

Package Size200.00cm * 200.00cm * 200.00cm Package Gross Weight120.000kg

Product Description

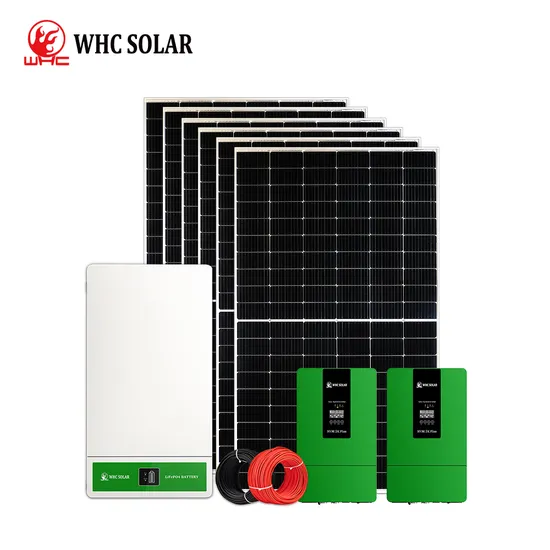

WHC 5KW 15KW 20KW Hybrid Off-Grid Solar Photovoltaic Panel Battery Backup Home Energy Storage Solar System for Residential Commercial Industry

Product Description

WHC 5KW 15KW 20KW Hybrid Off-Grid Solar Photovoltaic Panel Battery Backup Home Energy Storage Solar System for Residential Commercial Industry

WHC Solar Energy System also known as off-grid solar system is the most cost effective type for the solar system. It is a complete solar setup that comes with highly efficient solar panels.off-grid solar inverter, lithium ion battery or gel battery, and other standard solar accessories. This solar system will not only provide you continuous electricity but will also reduce your heavy electricity bills.

Product Parameters

WHC-HVM-5KW-5120WH
Item	Model	Specifications	Quantity
Solar Inverter	HVM Plus 5KW Solar Inverter	48V 5KW &MPPT500V 80A	1 pc
Solar Panel	WHC-450M-120 Solar Panel	Mono 34V 450W	6 pcs
Solar Battery	WHC-P-51.2V100AH Lithium Battery	Lithium Battery 5120Wh	1 pc
	PV Cable 100m	PV 6 MM²	2
Accessories	Battery Cable	35 MM²	9
	MC4	MC4 Connecter	2

Detailed Photos

Solar Hybrid Inverter

1. WHC 48V 5KW Solar Inveter 2. 48V 5KW 3. PV Input:500V 80A 4. Output:220V 50Hz 5. Performance And Extend Lifecycle 6.High Efficiency Pure Sine Wave Inverter

Mono Solar Panel

1. Model:WHC-450M-182 2. Max Power Voltage: 34.2V 3. Max Power Current:13.15A 4. Open Circuit Voltage: 41.04V 5. Short Circuit Current: 13.95A 6. Dimensions:1909*1134*35mm 7. Weight: 24.5KG

Solar Lithium Battery

1. WHC-P-51.2V100Ah Lithium Battery 2. Nominal Votage: 51.2V(48V) 3. Capacity:100AH 4. Energy: 5120Wh 5. Installation: Wall Mount 6. Sizes: 440*500*142mm
